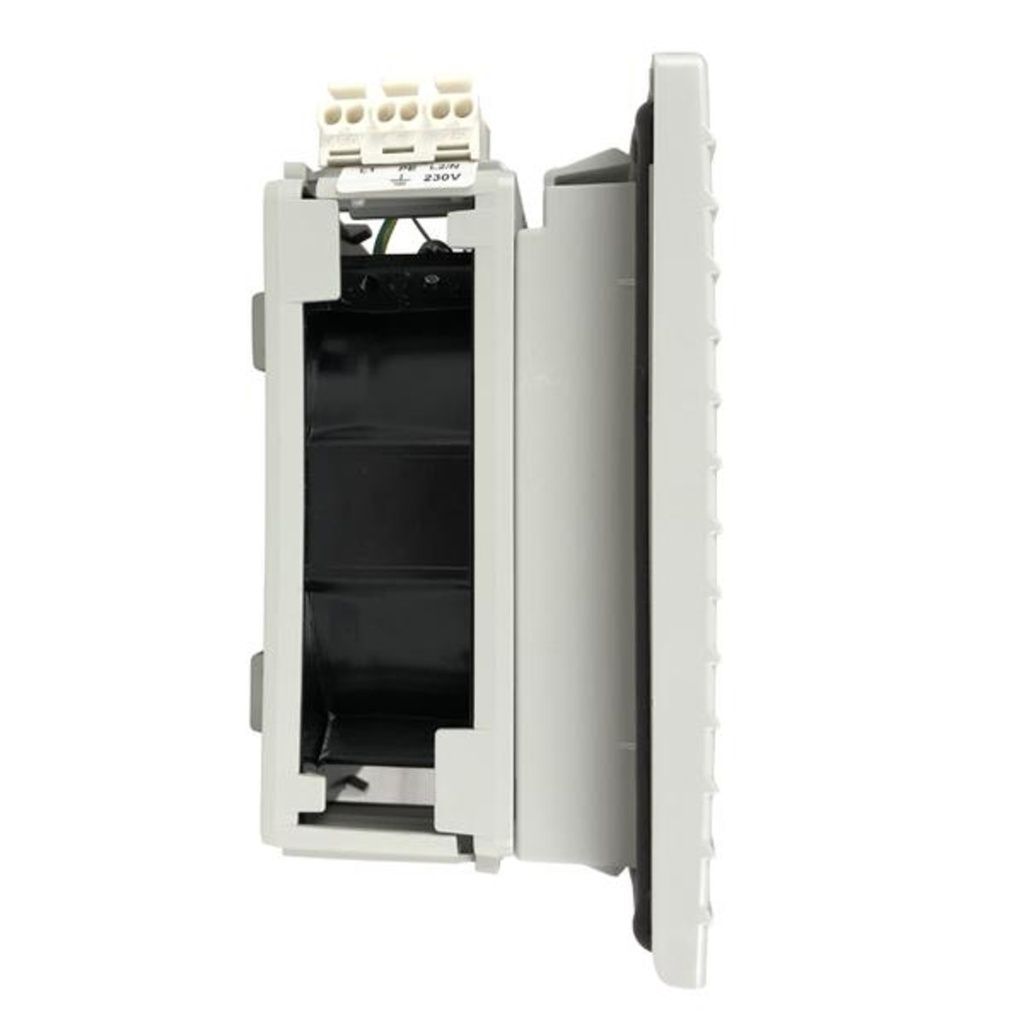

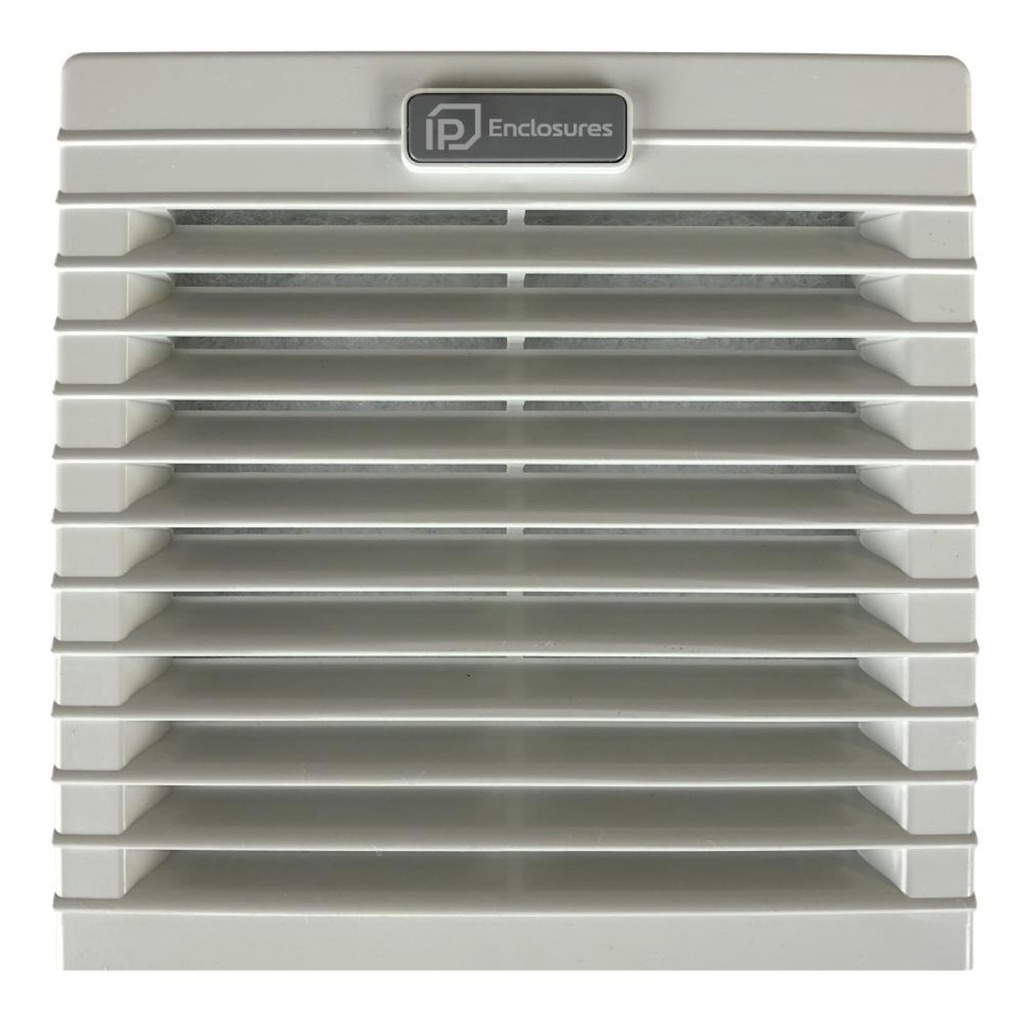

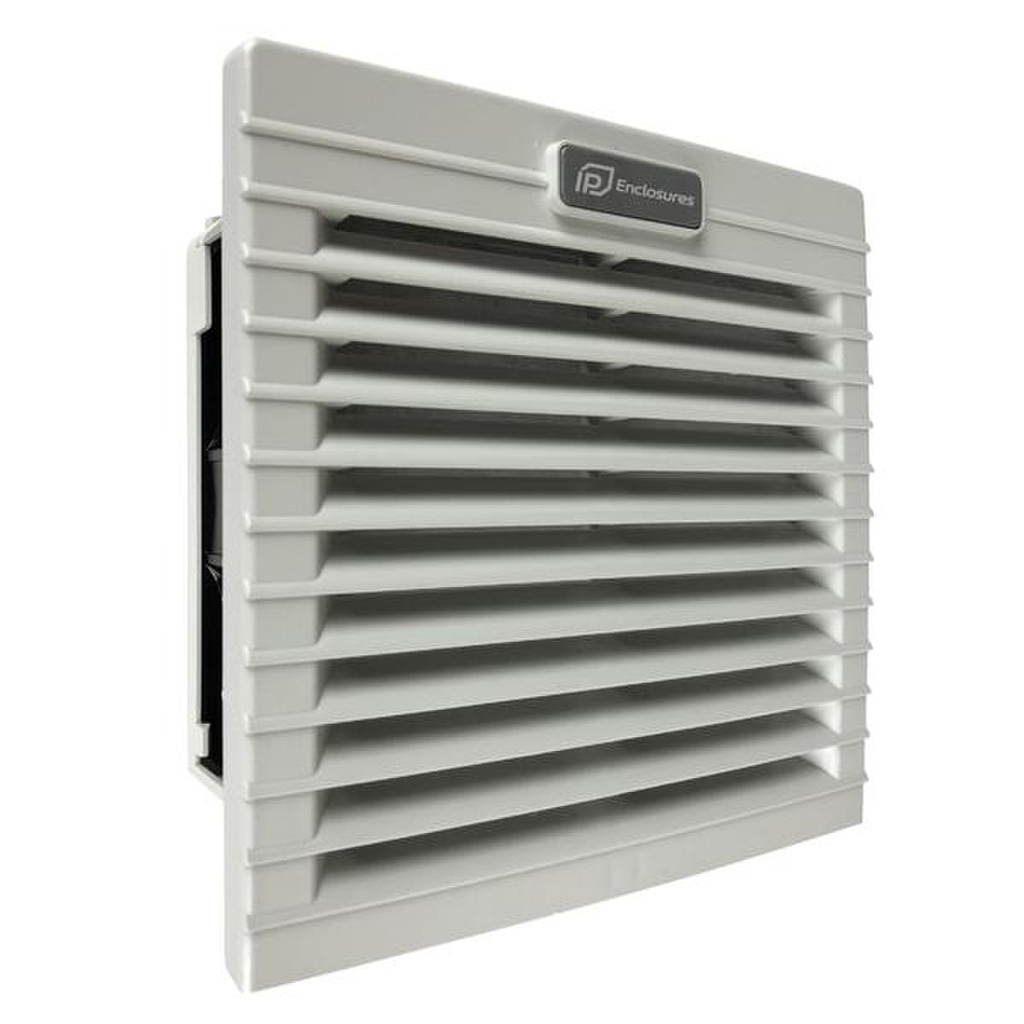

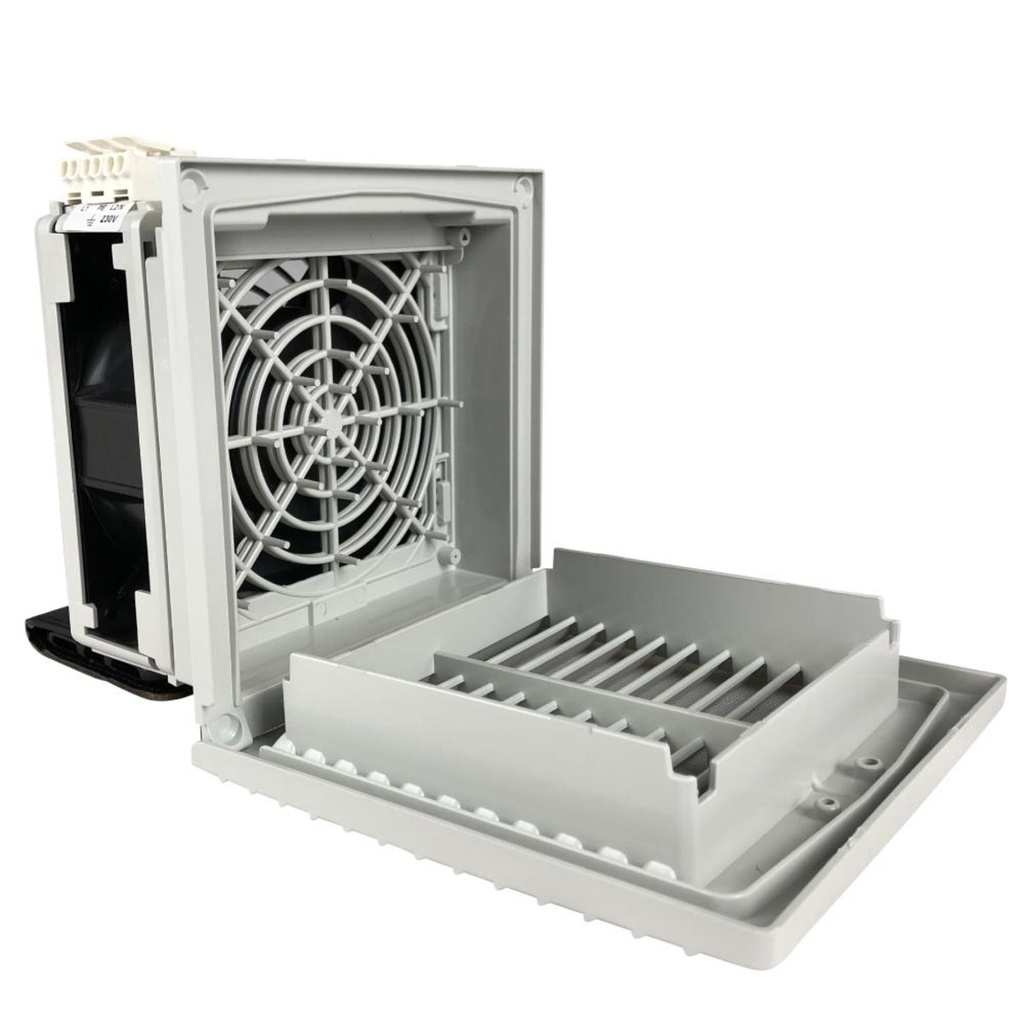

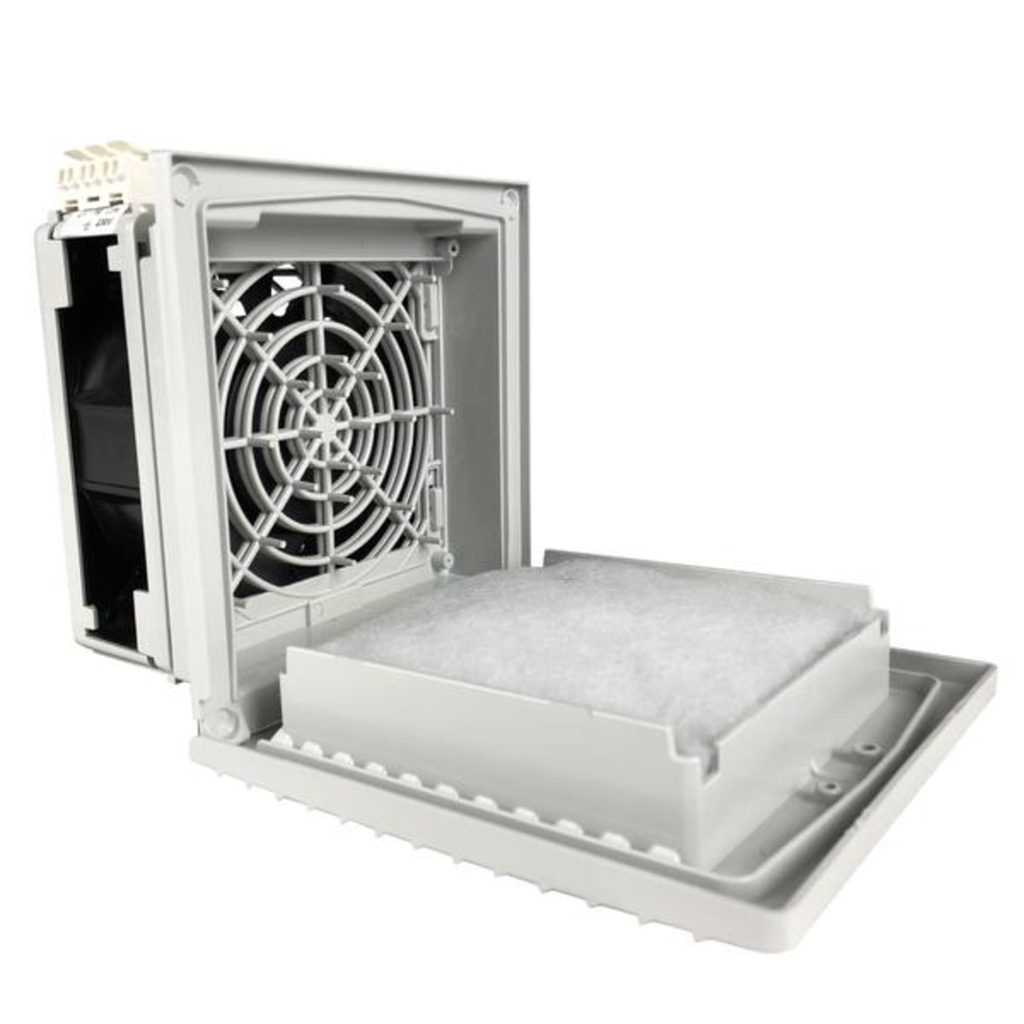

FILTER FAN 150 X 150 58M3/HR 230V

FILTER FAN 150 X 150 58M3/HR 230V High quality Italian filter fan unit for electrical enclosures. G3 Filter Mat Included. Features Unit IP-V2200 Air flow rate (free blow) m³/h 58 (64) Flow rate with exit filter m³/h 43 (48) Power supply V/Hz 230 / 50-60 Dimensions HxLxP mm 150x150x86 Power consumption W 22 (21) Current consumption A 0.14 (0.12) Overcurrent consumption – impedance Electric connection – 3-poles spring terminals Duty cycle – 100% Operating temperature °C – 10 / +70 (+14 / +158) Protection degree/class – IP54/Class I Noise level dB(A) 43 (49) Flow direction – reversible: default factory setting outside-in Bearing – ball Filter mat (Eurovent) – G3 Service life (at 40°C) hr 50 000 Material – ABS UL94V-0 Color RAL7035 Wall thickness mm 1.2-2.4 Gasket – foam seal gasket Weight (with packaging) kg 0.76 (0.83) Package dimensions mm 165x165x90 Montaggio – fast clip-on Cut-out dimensions mm 125×125 Conformity/Approvals – CE
